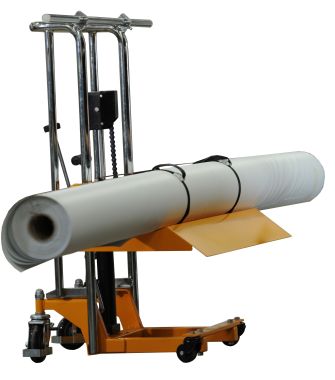

The Foster Keencut ON-A-ROLL LIFTER is your answer to transporting those heavy, wide-format media paper rolls used for sign making, large posters, billboard, photos and other large print projects. Get the paper rolls from warehouse directly to the printer like you’ve never done before:
- Save the two-wheel dollies for smaller transport projects
- No more wooden pallets
- Retire the fork lift truck and pallet jacks
- Save space with its sleek and solid design
- Operates in the tightest of shops – even those with limited floor space
One employee can pick up an oversized, awkward roll, place it into a variable height position, secure the roll and wheel it around through all size spaces.
- Increase work efficiency.
- Keeps other employees working on their tasks
- No lifting. No stretching. No straining.
- Save on injuries to the back, workmen’s compensation claims, lost work time.
- Holds rolls securely.
- Moves them easily.
- Roll any size media onto the lifter.
- Raises the paper roll to the height of the printer. Adjustable for varying print jobs and specifications.
The lifter is easy to maneuver:
- Nylon safety straps allow users to pull paper rolls up to specifications listed into the
securing tray for transport. One person can do easy step-by-step process. - The easy-to-use hydraulic foot pump allows users to raise the material for transport with minimal effort. No sweat, no strain. As easy as moving a roll of paper towels.
- Narrow passages and doors can be navigated efficiently with the heavy-duty rotating casters.
- Pushing awkward rolls around corners is no longer a concern. Accommodates the tight corners and spaces found in print shops with limited space and large equipment.
- The user is able to roll right up to the printer to load on the paper rolls. No more lifting.
Save time and dollars:
- Allows for quick changes in the middle of print runs.
- Use each paper roll to the very end of the roll.
- No more damages to paper rolls that can increase costs and take time
- Increases employee time and efficiency
- Very little down time between paper roll changes. Keeps presses moving.
Enhances safety and efficiency:
- Improves the safety of your employees
- Cuts down on injuries. Increases attendance at work
- Increases paper use efficiency.
- Uses employee time effectively
- Enhances production
- Lowers costs
MODEL 61574
SPECIFICATIONS
Roll Weight Capacity ......................... 300 kg (660 lbs)
Lift Height ...............................................84 cm (33”)
Max. Roll Width ....................................... 5 m (16’5”)
Max. Roll Diameter ............................. 40 cm (15.75”)
Width x Depth ...............................111.6 cm x 85.5 cm (44” x 33.6”)
Height ................................................. 119.4 cm (47”)
Weight ..................................................85 kg (188 lb)
Bottom Fork Clearance ...................... 8.25 cm (3.25”)
MODEL 61584
SPECIFICATIONS
Roll Weight Capacity ......................... 300 kg (660 lbs)
Lift Height ...............................................85 cm (33.5”)
Max. Roll Width ....................................... 2.5 m (8’2”)
Max. Roll Diameter ............................. 40 cm (15.75”)
Width x Depth ...............................80 cm x 80 cm (31.5” x 31.5”)
Height ................................................. 119.4 cm (47”)
Weight ..................................................80 kg (177 lb)
Bottom Fork Clearance ...................... 10 cm (4”)
MODEL 61586
SPECIFICATIONS
Roll Weight Capacity ......................... 300 kg (660 lbs)
Lift Height ...............................................85 cm (33.5”)
Max. Roll Width ....................................... 5 m (16’5”)
Max. Roll Diameter ............................. 40 cm (15.75”)
Width x Depth ...............................120 cm x 80 cm (47.25” x 31.5”)
Height ................................................. 119.4 cm (47”)
Weight .................................................. 85 kg (188 lb)
Bottom Fork Clearance ...................... 10 cm (4”)
MODEL 61570
SPECIFICATIONS
Roll Weight Capacity ......................... 200 kg (440 lbs)
Lift Height ...............................................1.8 m (71”)
Max. Roll Width ....................................... 1.2 m (47.25”)
Max. Roll Diameter ............................. 47 cm (18.75”)
Width x Depth ...............................85 cm x 80 cm (33.5” x 31.5”)
Height ................................................. 320.5 cm (80.7”)
Weight .................................................. 90 kg (198 lb)
Bottom Fork Clearance ...................... 10 cm (4”)
(Oversize shipping: $302.90)
Each model is specific to the size and weight of the roll, as well as the brand of printer.
It’s important that you provide us with this information in advance of the sale so that we can specify the correct model.
Please note in the comment-box at check-out the size and weight of the roll, as well as the brand of printer, that you will be using this lifter for, and we will verify you chose the correct model!
